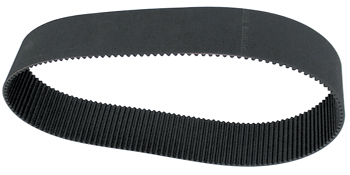

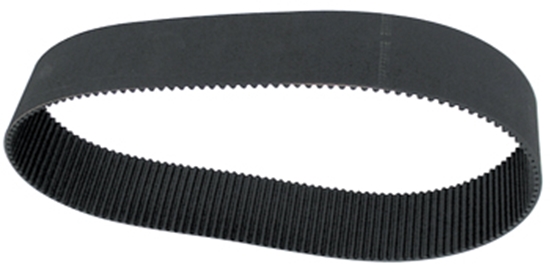

Picture of REPLACEMENT PRIMARY BELTS FOR BIG TWIN

REPLACEMENT PRIMARY BELTS FOR BIG TWIN

REPLACEMENT PRIMARY BELTS FOR BIG TWIN
Manufacturer: BELT DRIVES LTD
Availability: In stock
Part #: 77523

Weight: 0.8700

  • All replacement primary belts are fiberglass reinforced HTD type rubber belts supplied straight from the manufacturer to ensure a positive fit every time.
  • If the needed belt length is not known, determine the number of pulley teeth combination and width for the correct belt.
  • 14MM.
  • Belt Width:  1 1/2"
  • Number of Belt Teeth:  78
  • Pulley Teeth Combo:  24 & 37 with idler, 24 & 38 without idler
  • Fits 1937/1984 open or closed primary, kick or electric start.
  • Made in the USA.
  • Note:  Due to the numerous variables of misalignment and improper tensioning upon installation, there is no warranty on belts.

BELT DRIVES LTD.®
