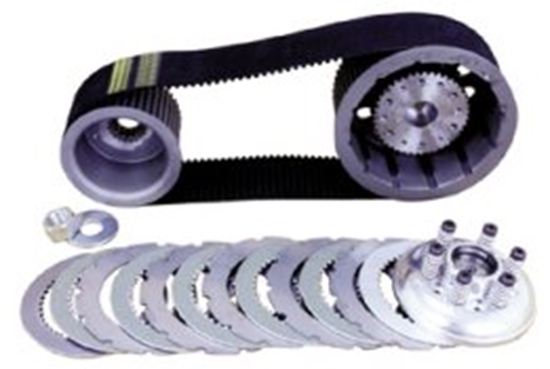

8MM BELT DRIVE/CLUTCH KITS FOR KICKSTART BIG TWIN MODELS

Weight: 19.1680

• 3" wide open belt drive.
• BDL pulleys are machined from a 356-T6 aluminum aircraft alloy and hard anodized.
• A fiberglass reinforced belt is used in these kits.
• Includes BDL's Quiet Clutch.
• The inner clutch hub uses a 40mm double row bearing for added strength compared to stock which is 35mm.
• The precision machined pressure plate (polished aluminum) uses 9 springs and shoulder bolts to insure even spring pressure.
• Includes instructions.
• Note: Requires part 73200 stock type clutch hub nut (not included in the kit).

Note: Due to numerous variables of misalignment and improper tension upon installation, there is no warranty on belts.

• 1.53:1 Drive Ratio Belt Drive Kit.
• 47-72 pulley tooth highway combo.
• Replacement belt 77522.
• Fits Big Twin 1955/Early 1984 with rear chain drive.
• Made in the USA.

BELT DRIVES LTD®
